Seagate ST39175LW SCSI Hard Drive

Item Number: SGT-ST39175LW-BN-OE
Manufacturer's Part Number: ST39175LW
Contact us about ST39175LWGet help regarding ST39175LW


Seagate Barracuda 18LP 9GB 7.2K Ultra2 68pin SCSI Hard Drive ST39175LW - Brand New OEM

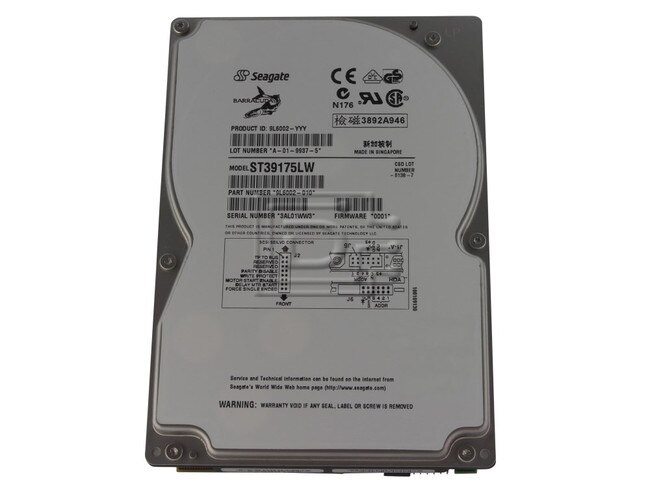

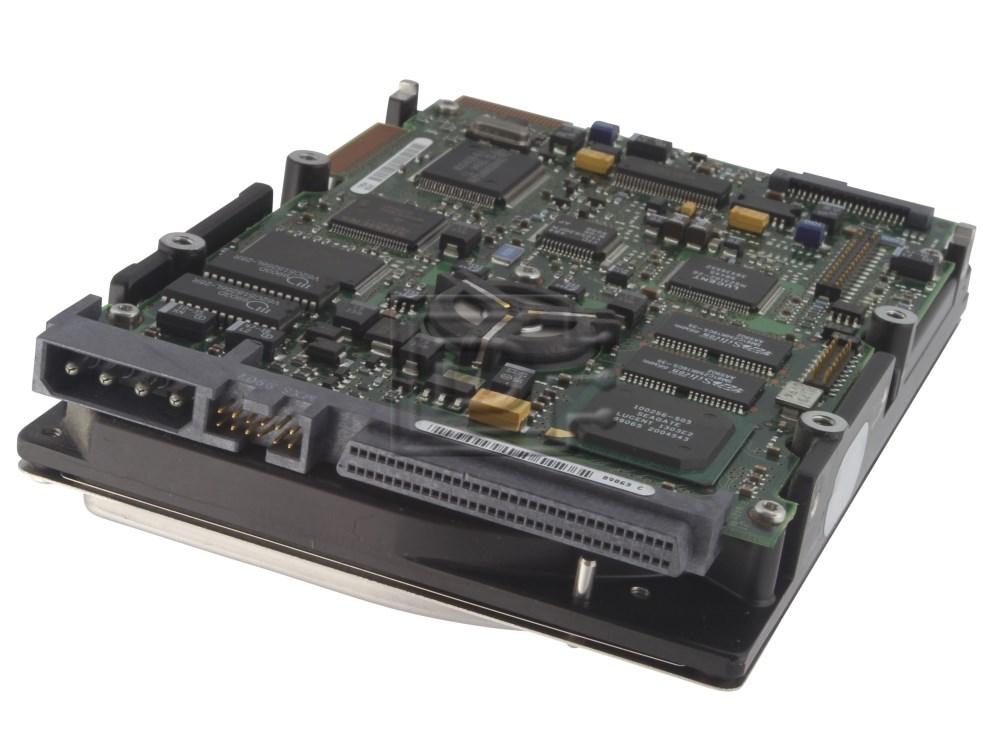

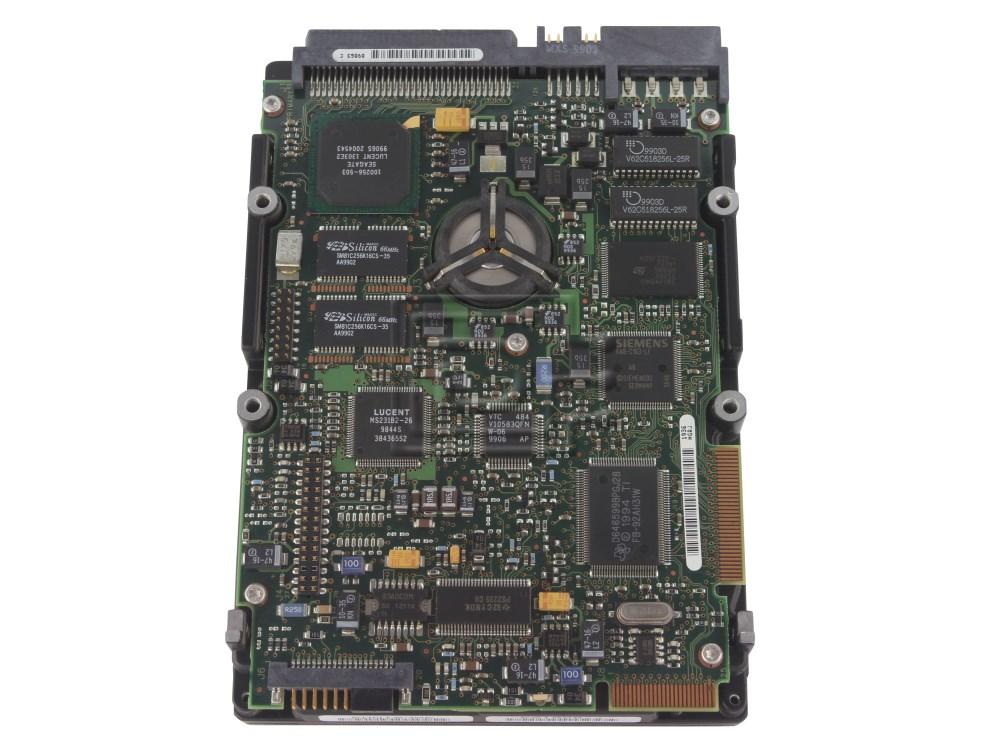

ST39175LW SCSI Hard Drive Photo

ST39175LW SCSI Hard Drive Photo ST39175LW SCSI Hard Drive Photo ST39175LW SCSI Hard Drive Photo ST39175LW SCSI Hard Drive Photo
Price: $299.95
Condition: Brand New - What does this mean?
Warranty: 1 Year - Reseller - What does this mean?



Capacity: 9GB
Spindle Speed: 7,200RPM
Interface Type: SCSI 68pin / HD68 Female
Disk Size: 3.5"x1.0" (LFF Hard Drive)
Sustained Throughput (MBps): 25.3
Average Seek Time (read/write ms): 6.9 / 7.7
Electrical Interface Speed: SCSI Ultra2 Wide - 80MBps 16-bit
On-Board Cache: 1MB



Brand New - What does this mean?

1 Year - Reseller - What does this mean?


Barracuda 18LP drives combine magnetoresistive (MR) heads, partial response/maximum likelihood (PRML) read channel electronics, embedded servo technology, and a SCSI-3 (Fast-20 and Fast-40) interface to provide high performance, high capacity data storage for a variety of systems including engineering workstations, network servers, mainframes, and supercomputers.

Fast-20 and Fast-40 (also known as Ultra-1 SCSI and Ultra-2 SCSI, respectively) are negotiated transfer rates. These transfer rates will occur only if your host adapter also supports these data transfer rates. This drive also operates at SCSI-1 and SCSI-2 data transfer rates for backward compatibility with non-Fast-20/Fast-40 capable SCSI host adapters.


Compatibility


SEAGATE TECHNOLOGY, INC.
                              1-800-SEAGATE
                          http://www.seagate.com
                            (C)opyright 1998


ST-39175LW Ultra2 SCSI Wide (Barracuda 18LP, LVD)

  ÉÍÍÍÍÍÍÍÍÍÍÍ»
  º REAR VIEW º  (ST-39175LW only)
  ÈÍÍÍÍÍÍÍÍÍÍͼ
        (TOP)                  J5 Auxiliary
          ___________________  ÚÄÄ  Ä1¿/ÍÍÍÍÍÍÍÍÍ\
        Í( ×××××××××××××××××1)ͳ::::::³³ 0 0 0 0 ÆÍ
          \ÄÄÄÄÄÄÄÄÄÄÄijÄÄÄÄ/  À  ÄÄ 2ÙÀÄ5ÄGÄGÄ12Ù
       68 pin I/O CableÙ        ³³³³³³
       Connection Male          ³³³³³³   SCSI ID = 0 (none)
                                ³³³³³ÀÄÄ SCSI ID = 1
                   pin-11 +5v ÄÄÙ³³³ÀÄÄÄ SCSI ID = 2
                   pin-10 GND ÄÄÄÙ³ÀÄÄÄÄ SCSI ID = 4
                                  ÃÄÄÄÄÄ SCSI ID = 8
      pins 9 & 12 no connection   ÀÄÄÄÄÄÄ or pin-8 Activity LED*

* These pins are driven low for 250ms after PWR ON and RESET
  to allow jumper selectable SCSI ID as shown above.


  ÉÍÍÍÍÍÍÍÍÍÍÍ»
  º REAR VIEW º  (ST-39175LC only)
  ÈÍÍÍÍÍÍÍÍÍÍͼ
                     80 pin I/O and DC Power Wall/bracket Connection
                     ³  Female
    J1          /ÄÄÄijÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ\      TOP (HDA)
     ÍÍÍÍÍÍÍÍÍÍ/ ×××××××××××××××××××× \ÍÍÍÍÍÍÍÍÍÍ
              (\Ä1ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ40/)    BOTTOM

     Notes on 80 pin I/O connector:
       pins  1 -  4 = +12v        41 - 44 = 12v GND
            34 - 36 = +5v         74 - 76 = 5v GND
                 37 = SYNC             77 = LEDC
                 38 = MTRON            78 = DLYDST
                 39 = SCSIA0           79 = SCSIA1
                 40 = SCSIA2           80 = SCSIA3

  Mating connector: AMP US p/n: 2-557103-1 straight-in, Male 80-pin
                                   2-557101-1 right angle to PCB

  ÉÍÍÍÍÍÍÍÍÍÍÍ»
  º SIDE VIEW º  (ST-39175LW/LC)
  ÈÍÍÍÍÍÍÍÍÍÍͼ

             FRONT    TOP (HDA)    J2  87654321              Õ͸
              OF ÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍPÍWÍAÍÍÍÍÍ͵J1
             DRIVE    BOTTOM           ::::::::              Ô;
                                       ³³³³³³³³
 Force Single-ended (LVD models only) ÄÙ³³³³³³À Term Power (LW only)¿
           Start Delay (12 secs * ID) ÄÄÙ³³³³ÀÄ Reserved            ³
                          Motor Start ÄÄÄÙ³³ÀÄÄ Reserved            ³
                        Write Protect ÄÄÄÄÙÀÄÄÄ Parity Disable      ³
                                                                    ³
                                                                    ³
                    ÚÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ¿              ³
                    ³ Termination Power-source Table ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÙ
                    ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄ¿
                    ³               ....ÍÍÍÍÍPWA edgeÍÍÍÍÍ ³
                    ³                            2 1       ³
                    ³ A Drive Supplies Bus        ÖÄ·      ³
                    ³                            øºøº      ³
                    ³  (not used on LC model)    øÓø½      ³
                    ³                             A        ³
                    ÀÄÄÄÄÄÄÄÄÄDefault no jumper ÄÄÄÄÄÄÄÄÄÄÄÙ

     Note: LW and LC drives do not have internal terminators or
           any other way of adding internal terminators to the
           drive; use external active termination if required.
           Use active (ANSI SCSI-2 Alternative 2) terminators
           when terminating the bus.  Use active negation
           terminators when terminating a SCSI Ultra2 bus
           operating in Low Voltage Differential (LVD) mode.

  ÉÍÍÍÍÍÍÍÍÍÍÍÍ»
  º FRONT VIEW º  (ST-39175LW/LC)
  ÈÍÍÍÍÍÍÍÍÍÍÍͼ
                                  ÚÄÄ´Reserved. Shipped with cover installed.
                                  ³  ÀDo not remove. Do not install jumpers
                      TOP (HDA)  ÕØÍÍ͸     1
     ÍÍPÍWÍAÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ͵::::³::::::ÆÍÍ
                 *    BOTTOM     ÔÍÍÍ;123456
                 ³               J6    ³³³³³³
            LED ÄÙ                     ³³³³³³
                            Remote LED Ù³³³³À ID 1
                           (pin-11 +5v) ³³³ÀÄ ID 2
                              Reserved ÄÙ³ÀÄÄ ID 4
                           (pin-10 GND)  ÀÄÄÄ ID 8



                            ST-39175LW



       UNFORMATTED CAPACITY (GB) ________________
       FORMATTED CAPACITY (GB) __________________9.10
       AVERAGE SECTORS PER TRACK ________________303 rounded down
       ACTUATOR TYPE ____________________________ROTARY VOICE COIL
       TRACKS ___________________________________58,605
       CYLINDERS ________________________________11,721 user
       HEADS ______PHYSICAL______________________5
       DISCS (3.5 in) ___________________________3
       MEDIA TYPE _______________________________THIN FILM/MR
       RECORDING METHOD _________________________PRML 16/17 EPR4
       INTERNAL TRANSFER RATE (mbits/sec)________137 to 240
       EXTERNAL TRANSFER RATE (mbyte/sec) _______40 Sync
            Low Voltage Differential(LVD) _______80 Sync
       SPINDLE SPEED (RPM) ______________________7,200
       AVERAGE LATENCY (mSEC) ___________________4.17
       BUFFER (/optional)________________________1024/4096 KByte
         Read Look-Ahead, Adaptive,
         Multi-Segmented Cache
       INTERFACE ________________________________Ultra2 SCSI
              ASA II, SCAM level 2 (1 default)
       BYTES PER TRACK __________________________186 KByte avg
       SECTORS PER DRIVE ________________________17,783,240
       TPI (TRACKS PER INCH) ____________________12,580
       BPI (PEAK KBITS PER INCH) ________________223
       AVERAGE ACCESS (ms read/write)____________6.9/7.7
         Drive level without controller overhead
       SINGLE TRACK SEEK (ms read/write) ________0.9/1.2
       MAX FULL SEEK (ms read/write) ____________15/16
       MTBF (power-on hours) ____________________1,000,000
       SHOCK (G's, 11/2 ms):
                operating (Read/Write) __________5
                abnormal ________________________10
                nonoperating ____________________75/150
       ACOUSTICS (Bels typical, sound power) ____4.1
       POWER DISSIPATION (watts/BTUs) Active ____16.8/57.3
                                      Idle ______9.75/33.3
       POWER REQUIREMENTS: +12V START-UP (amps) _1.6
                           +12V TYPICAL (amps) __0.5 idle
                           +5V START-UP (amps) __1.05
                           +5V TYPICAL (amps) ___0.75 idle
                           IDLE (watts) _________
       LANDING ZONE (cyl) _______________________AUTO PARK
       IBM AT DRIVE TYPE ________________________0 or NONE

       Physical:
                        Height (inches/mm):      1.0/25.4
                        Width  (inches/mm):     4.00/101.6
                        Depth  (inches/mm):     5.75/146
                        Weight    (lbs/kg):      1.3/0.589

Already low-level formatted at the factory with x spare sectors at
the end of each x cylinder region.

ZBR = Zone Bit Recording = Variable sectors per track


Seagate reserves the right to change, without notice, product
offerings or specifications. (11/13/99)

Click here to view the manufacturers item description/brochure
