Seagate ST3160022A ATA / IDE Hard Drive

Item Number: SGT-ST3160022A-BN-OE
Manufacturer's Part Number: ST3160022A
Contact us about ST3160022AGet help regarding ST3160022A

Seagate ST3160023A U Series 9 160GB 5.4K IDE ATA/100 Hard Drive  - Brand New

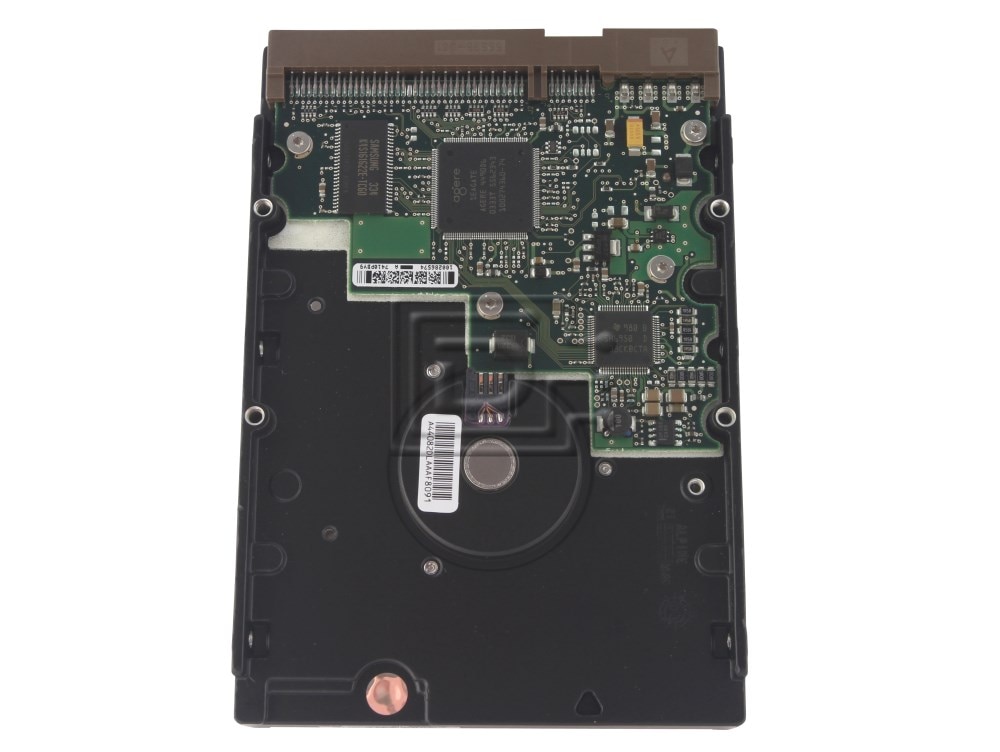

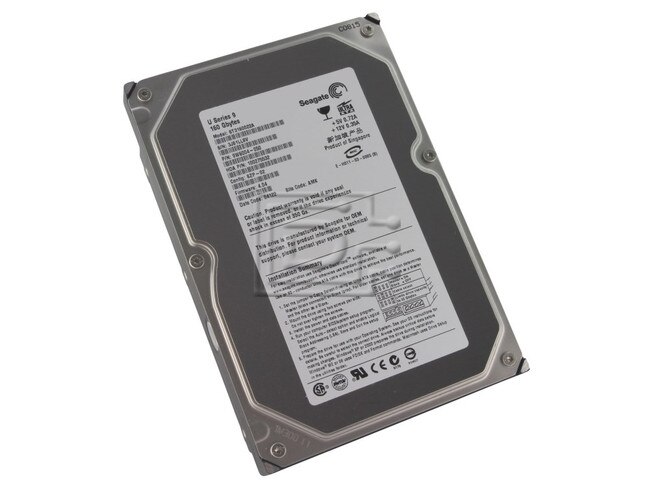

ST3160022A SCSI Hard Drive Photo

ST3160022A SCSI Hard Drive Photo ST3160022A SCSI Hard Drive Photo ST3160022A SCSI Hard Drive Photo ST3160022A SCSI Hard Drive Photo
Price: $79.00
Condition: Brand New - What does this mean?
Warranty: 1 Year DiscTech - What does this mean?

Capacity: 160GB
Spindle Speed: 5,400RPM
Interface Type: IDE ATA 3.5in
Disk Size: 3.5inx1.0in LFF Hard Drive
Sustained Throughput (MBps): 58
Average Seek Time (read/write ms): 8.5 / 9.5
Electrical Interface Speed: EIDE Ultra ATA100 100MBps
On-Board Cache: 8MB

Brand New - What does this mean?
1 Year DiscTech - What does this mean?

These drives provide the following key features:

• High instantaneous (burst) data transfer rates (up to 100 Mbytes per second)

using Ultra DMA mode 5.

• Giant magnetoresistive (GMR) recording heads and EPRML technology,

which provide the drives with increased areal density.

• State-of-the-art cache and on-the-fly error-correction algorithms.

• Full-track multiple-sector transfer capability without local processor intervention.

• Quiet operation.

• 350 Gs nonoperating shock.

• SeaTools diagnostic software performs a drive self-test that eliminates

unnecessary drive returns.

• The 3D Defense System™, which includes Drive Defense, Data Defense,

and Diagnostic Defense, offers the industry’s most comprehensive protection

for disc drives.

• Support for S.M.A.R.T. drive monitoring and reporting.

• Support for Read Multiple and Write Multiple commands.

• Support for autodetection of master/slave drives that use cable select



                            (C)opyright 2003

ST-3160022A (U Series 9 160022, Ultra ATA/100)

                  J2  40 pin I/O Cable Connection
                  �   pin-20 removed
                  �            ��� [spare jumper on pins 5-7]
                  �            �
       ���������� ������������ͳ����1�/���������\    TOP (HDA)
      ͵::::::::::�::::::::1� :�: : : � 0 0 0 0 ���
       ����������������������8�ͳͳͳ���5�G�G�12�    BOTTOM
                              � � � �
                              � � � ��� Limit Capacity (see below)
                              � � ����� Reserved
            O=OFF, X=ON -->>  X-O������ Master ON
                              O-O������ Slave  OFF

                              X-X������ Slave Present (when pins 7-8 ON
                                         used on Master drive)
                              O-X������ Cable Select  (when pins 7-8 OFF)

On drives greater than 33.8GB, Limit Capacity jumper changes total
available sectors as reported via Identify Drive data words 60-61 to
33.8GB to solve issues with certain BIOS during power on. The ATA
Read Native Max command will report true full capacity. The ATA
Set Max command will restore true full capacity to the operating
system drivers. Third party partitioning software may be needed to
achieve full capacity when using this option jumper.


       FORMATTED CAPACITY (GB) __________________160
       ACTUATOR TYPE ____________________________VOICE COIL
       CYLINDERS __PHYSICAL______________________
       HEADS ______PHYSICAL______________________4
       DISCS (3.5 in) ___________________________2
       MEDIA TYPE _______________________________THIN FILM
       HEAD TYPE ________________________________GMR
       RECORDING METHOD _________________________EPRML 16/17 ZBR
       INTERNAL TRANSFER RATE (Mbytes/sec) ______up to 85.4
       SUSTAINED TRANSFER RATE (MB/sec)__________up to 48
       EXTERNAL TRANSFER RATE (Mbytes/sec) ______up to 100
       PIO/DMA/UDMA MODE (max) __________________4/2/5
       AVERAGE LATENCY (mSEC) ___________________4.16
       BUFFER ___________________________________1MB
        Read/Write Multiple, Read Look-Ahead,
       INTERFACE ________________________________Ultra ATA/100
       SECTORS PER DRIVE (LBA mode) _____________312,581,808
       TPI (TRACKS PER INCH) ____________________94,600
       BPI (KBITS PER INCH) _____________________up to 595,000
       AVERAGE ACCESS (ms seek/read/write) ______8.5/8.5/9.5
       SINGLE TRACK SEEK (ms seek/read/write) ___/<1.0/<1.2
       MAX FULL SEEK (ms seek/read/write) _______//
       MTBF (power-on hours) Office _____________600,000
       SHOCK (G's, 11ms/2ms):
                operating (Read/Write) __________/63
                abnormal ________________________
                nonoperating ____________________/350
       ACOUSTICS (bels)
         fluid bearing (typ/max-quiet/max-perf) _<2.5/3.0/
       POWER DISSIPATION (watts) ________________
       POWER REQUIREMENTS: +12V START-UP (amps) _2.8
       POWER MANAGEMENT (Watts):
                           ACTIVE _______________12.5
                           IDLE _________________7.5
                           STANDBY (typ/max) ____0.9/

                    Height (inches/mm):   1.028/26.04
                    Width  (inches/mm):    4.00/101.6
                    Depth  (inches/mm):    5.78/146.9
                    Weight      (lb/g):     1.4/635

Set CMOS hard drive setup to Auto-Detect with LBA mode enabled.


Some systems BIOS have capacity limitations. Types that have
been identified are:

   a  2.11GB or 4095 cylinder limitation
   a  3.26GB or 6322 cylinder limitation
   a  4.22GB or 8192 cylinder limitation
   a  8.45GB Standard INT13 limitation (CHS[1024x256x63]x512)
   a  33.8GB or  66,060,287 LBAs limitation
   a 137.4GB or 268,435,455 LBAs limitation (28-bit limit)

and, if exceeded, may cause the system to hang during boot,
capacity reduction or it can truncate or wrap the cylinders when
auto-detect options set in the CMOS.

New INT13 Extensions and LBA mode in BIOS and FAT32 or NTFS-based
file systems are required to acheive full capacity. FAT32 file
system can create single partitions and logical drives up to 2TB.

FULL-CAPACITY solutions include third-party drive preparation
software, system BIOS update which supports LBA mode or third
party bios driven host adapters.

Default CHS translation:
     16,383 cyl, 16 heads, 63 sectors = 8,455,200,780


Windows XP Service Pack 1 and Windows 2000 Service Pack 3 with
48-bit LBA Address drivers are required for native support of
ATA (IDE) disc drives greater than 137GB.

Windows 98, Windows Millennium and Windows NT 4.x all have 137GB
native limitations supporting ATA (IDE) disc drives. Third-party
device drivers may be available from motherboard or host adapter
manufacturers for these legacy Windows operating systems.

Windows 95 FAT16 based operating systems are also limited to 8.4GB.

DOS 16-bit FAT file system cannot access more than 2.147 Gbytes per

Already low-level formatted at the factory.

Seagate reserves the right to change, without notice, product
offerings or specifications. (03/16/2003)
