Seagate Cheetah 15K.6 300GB ST3300656SS SAS Hard Disk

Item Number: SGT-ST3300656SS-RF-OE-DEL
Manufacturer's Part Number: ST3300656SS
Contact us about ST3300656SSGet help regarding ST3300656SS

Seagate Cheetah 15K.6 ST3300656SS 300GB 15K 3.0Gbps Serial SCSI / SAS Hard Drive - Refurbished OEM

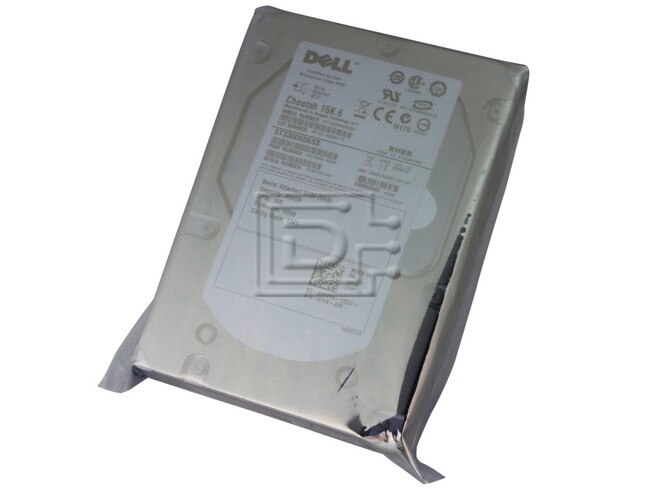

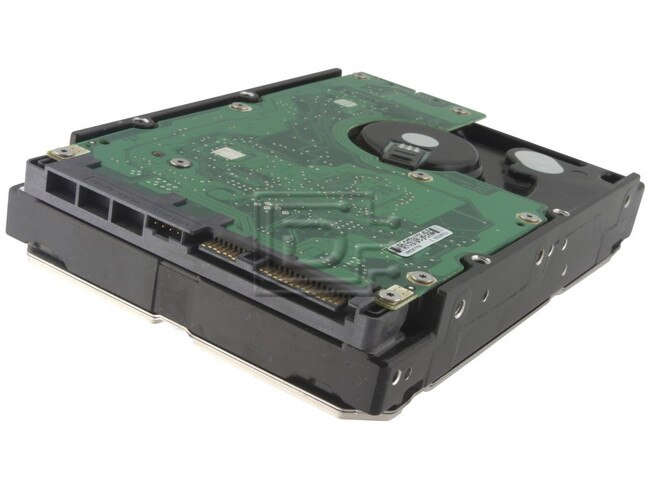

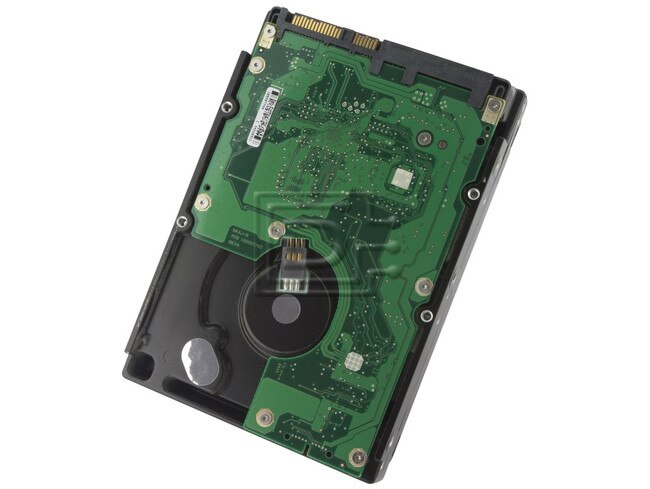

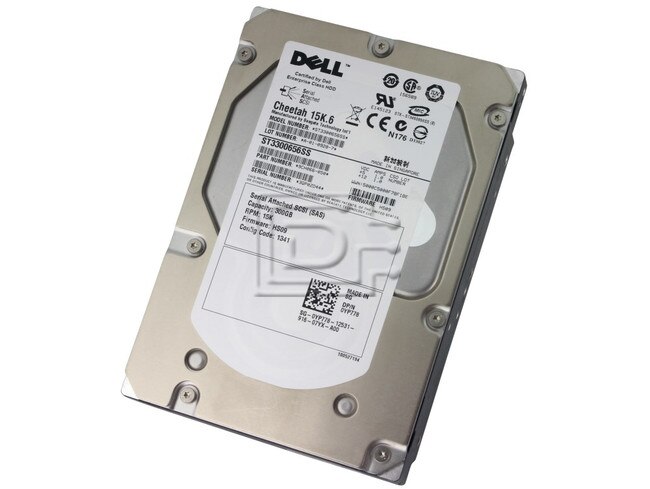

ST3300656SS SCSI Hard Drive Photo

ST3300656SS SCSI Hard Drive Photo ST3300656SS SCSI Hard Drive Photo ST3300656SS SCSI Hard Drive Photo ST3300656SS SCSI Hard Drive Photo
Price: $59.00
Condition: Refurbished - What does this mean?
Warranty: 1 Year DiscTech - What does this mean?

Capacity: 300GB
Spindle Speed: 15,000RPM
Interface Type: SAS Serial Attached SCSI
Disk Size: 3.5inx1.0in LFF Hard Drive
Sustained Throughput (MBps):
Average Seek Time (read/write ms):
Electrical Interface Speed: SAS Serial Attached SCSI - 3.0Gbps
On-Board Cache: 16MB

Refurbished - What does this mean?
1 Year DiscTech - What does this mean?
Features Benefits
15K RPM spindle speed
Delivers more I/O's per second and faster sustained transfer rates than 10K 3.5-inch drvies, enabling the same high performance to be met with fewer drives.
Background Media Scan (BMS)
Second generation Seagate-exclusive BMS proactively scans the media for potential defects during drive idle time. It enables incipient errors to be corrected before data is lost.
Perpendicular Recording
Perpendicular recording is fundamentally superior, enabling the highest areal density with 30 percent higher performance.
Nonrecoverable Error Rate
The nonrecoverable error rate has been improved by a factor of 10.
Idle Read After Write (IRAW)
Seagate-exclusive IRAW enhances data protection by verifying-during drive idle time-that data in the drive buffer was properly written.
  • The industry's highest reliability 3.5" drive
  • 30% more IOPS and 20% faster response times than 3.5" 10K drives

Alternate PNs: YP778 0YP778 9CH066-050


All SAS compatible servers including:
Dell PowerEdge 1900, 1950, 2900, 2950, 6900, 6950. PowerVault MD1000, MD3000, MD3000i, MD3200

Model Number ST3300656SS
Interface SAS 3Gb/s
Cache 16MB
Capacity 300 GB
Areal density (avg) 165 Gbits/inch2
Guaranteed Sectors 585,937,500
Height (max) 26.11 mm (1.028 inches)
Width (max) 101.85 mm (4.010 inches)
Length (max) 146.99 mm (5.787 inches)
Weight (typical) 694 grams (1.53 pounds)
Spindle Speed 15,000 rpm
Sustained data transfer rate 171,000 null
Average latency 2.0 msec
Random read seek time 3.4 msec
Random write seek time 3.9 msec
null 300 null
MTBF 1,600,000 hours
Annual Failure Rate 0.55%
Unrecoverable read errors 1 in 10^16
Maximum start current, AC 4.06 amps
Maximum start current, DC 1.78 amps
Ambient Temperature
Operating 5 to55 degrees C
Nonoperating -40 to70 degrees C
Maximum operating temperature change 20 degrees C per hour
Maximum nonoperating temperature change 20 degrees C per hour
Operating Shock (max) 25 Gs null 2 msec
Nonoperating Shock (max) 300 Gs null 2 msec
Acoustics (Idle Volume) 3.5 bels
Acoustics (Seek Volume) 3.7 bels

Click here to view the manufacturers item description/brochure
