Seagate 20GB Ultra ATA / 100 IDE Hard Drive ST320014A

Item Number: SGT-ST320014A-BN-1Y
Manufacturer's Part Number: ST320014A
Contact us about ST320014AGet help regarding ST320014A


Seagate 20GB Ultra ATA / 100 IDE Hard Drive ST320014A - Brand New

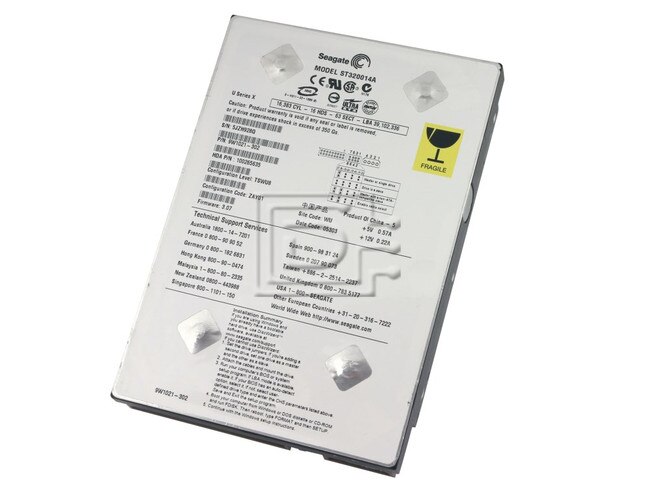

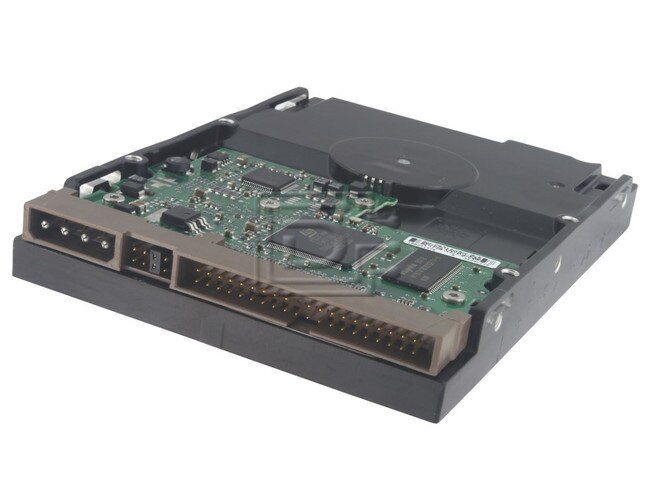

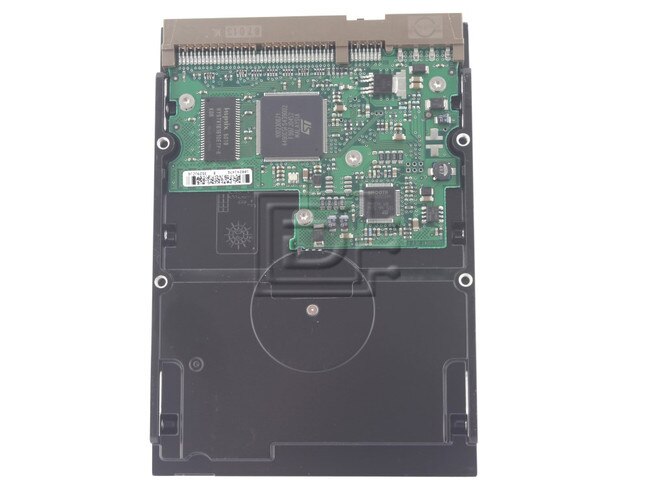

ST320014A SCSI Hard Drive Photo

ST320014A SCSI Hard Drive Photo ST320014A SCSI Hard Drive Photo ST320014A SCSI Hard Drive Photo ST320014A SCSI Hard Drive Photo
Price: $49.00
Condition: Brand New - What does this mean?
Warranty: 1 Year - Manufacturer - What does this mean?



Capacity: 20GB
Spindle Speed: 5,400RPM
Interface Type: IDE / ATA (3.5")
Disk Size: 3.5"x1.0" (LFF Hard Drive)
Sustained Throughput (MBps):
Average Seek Time (read/write ms): 18.0 / 24.9
Electrical Interface Speed: EIDE / Ultra ATA/100 - 100MBps
On-Board Cache: 2MB



Brand New - What does this mean?

1 Year - Manufacturer - What does this mean?

  • Low power consumption
  • High instantaneous (burst) data-transfer rates (up to 100 Mbytes per second) using Ultra DMA mode 5
  • Giant magnetoresistive (GMR) recording heads and GPRML technology, which provide the drives with increased areal density
  • State-of-the-art cache and on-the-fly error-correction algorithms
  • Full-track multiple-sector transfer capability without local processor intervention
  • Quiet operation
  • 350 Gs nonoperating shock
  • SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
  • Support for S.M.A.R.T. drive monitoring and reporting
  • Support for drive self-test (DST) with S.M.A.R.T. Execute Off-line Immediate
  • Support for Read Multiple and Write Multiple commands
  • Support for autodetection of master/slave drives that use cable select (CSEL)


Compatibility

This drive is compatible with any computer having an IDE/PATA controller.


Specifications
Model number ST320014A
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 19.9 mm
Width 101.9 mm
Length 147 mm
Weight 0.455 kg
Formatted Capacity 20 Gbytes
Rotational Speed 5,400 rpm
Internal Transfer Rate (max) 455 Mbits/sec
External (I/O) Transfer Rate (max) 100 MBytes/sec
Average Seek Time, Read 18 msec typical
Average Seek Time, Write 24.9 msec typical
Track-to-Track Seek, Read 1.2 msec typical
Track-to-Track Seek, Write 2.0 msec typical
Default Buffer (cache) Size 2 Mbytes
Number of Discs (physical) 1
Number of Heads (physical) 1
Startup Current (12VDC +/- 5%) 1.9 amps
Startup Current (5VDC +/- 5%) .5 amps
Max Operating Shock (2-msec) 63 Gs
Max Nonoperating Shock (2-msec) 350 Gs
Operating Vibration (max) .5 Gs
Nonoperating Vibration (max) 5.0 Gs
Operating Temperature (max) 60 deg C
Operating Temperature (min) 0 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Acoustics, Idle (sound power, typ) 2.7 Bels
MTBF (Hours) 600,000 hours
Nonrecoverable Read Errors 1 per 10^13 bits read

Click here to view the manufacturers item description/brochure
