Fujitsu MBA3300NP SCSI Hard Disk Drives

Item Number: FUJ-MBA3300NP-RF-OE
Manufacturer's Part Number: MBA3300NP
Contact us about MBA3300NPGet help regarding MBA3300NP


Fujitsu MBA3300NP 300GB 15K U320 68pin  SCSI Hard Drive RoHS Compliant - Refurbished

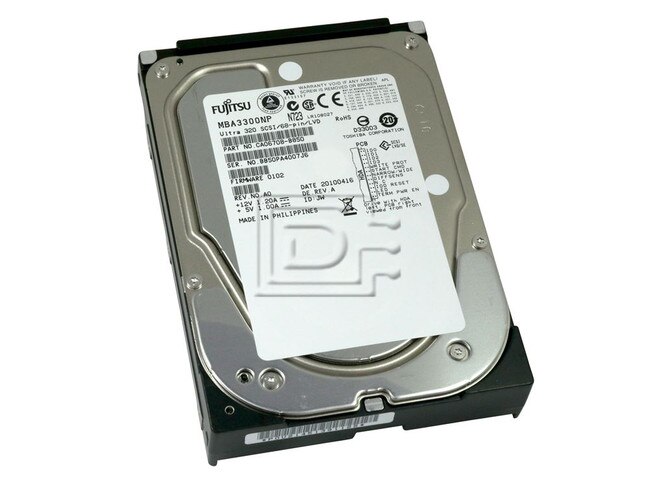

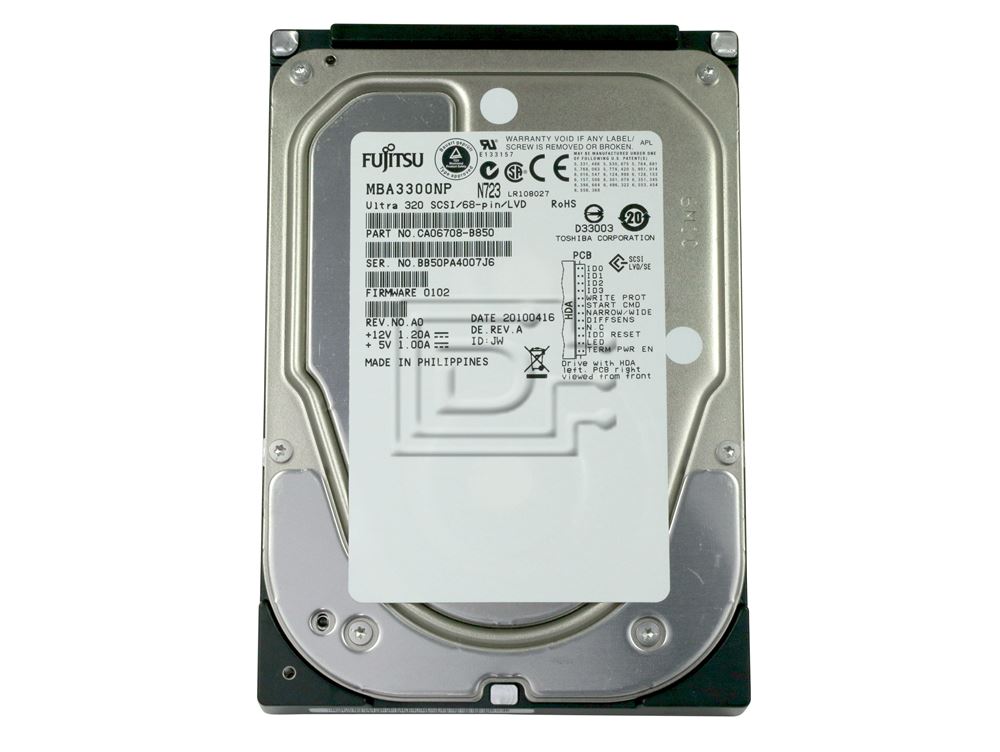

MBA3300NP SCSI Hard Drive Photo

MBA3300NP SCSI Hard Drive Photo MBA3300NP SCSI Hard Drive Photo MBA3300NP SCSI Hard Drive Photo MBA3300NP SCSI Hard Drive Photo
Price: $425.00
Condition: Refurbished - What does this mean?
Warranty: 1 Year - Reseller - What does this mean?



Capacity: 300GB
Spindle Speed: 15,000RPM
Interface Type: SCSI 68pin / HD68 Female
Disk Size: 3.5"x1.0" (LFF Hard Drive)
Sustained Throughput (MBps):
Average Seek Time (read/write ms): 3.4/3.9
Electrical Interface Speed: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB



Refurbished - What does this mean?

1 Year - Reseller - What does this mean?


Fujitsu's latest generation 15K RPM Enterprise Hard Disk Drives (MBA Series) continue to represent some of the fastest enterprise 3.5-inch hard disk drives in the industry. Leveraging our technology expertise and heritage, we deliver reliable, high-capacity HDDs for your customer’s most demanding storage applications.

With 73, 147 and 300GB capacity points this latest drive technoogy offers low power consumption, high reliability, and faster internal data rates. Interface options include 3Gb/sec SAS, 68/80-pin U320 SCSI and 4Gb/sec Fibre Channel.

Leading edge technology enables industry leading performance specifications blended with the latest advances in interface technology. This provides a flexible and cost effective storage solution for your most demanding applications including rack and tower servers, storage arrays, RAID systems and digital video systems.

Fujitsu p/n: CA06708-B850


Compatibility

This drive is compatible with any of our SCSI controllers.


Model MBA3073
NC/NP
MBA3147
NC/NP
MBA3300
NC/NP
Functional Specifications
Storage Capacity (formatted) 73.5 GB 147.0 GB 300.0 GB
Disks 1 2 4
Heads (read/write) 2 4 8
Bytes/Sector 512
Seek Time Track to track Read: 0.2 ms (typ) / Write: 0.4 ms (typ)
Average Read: 3.4 ms (typ) / Write: 3.9 ms (typ)
Full track Read: 8.0 ms (typ) / Write: 9.0 ms (typ)
Average Latency 2. ms
Rotational Speed 15,000 RPM
Data Transfer Rate To/from media 147 MB/s
To/from host SCSI: 320 MB/s
Recording Code 60/62 MEEPRML
Interface SCA-2 80Pin (NC Series), 68Pin Wide (NP Series)
Head Positioning Method Rotary VCM
Start Time 20 s (typ)
Stop Time 20 s (typ)
Buffer Size 8 MB
Physical Specifications
Power Requirements Voltage 5 V ± 5%, 12 V ± 5%
Idle (typ.) 9.5 W
Dimensions (HxWxD) 25.4mm x 101.6mm x 146.0mm
Weight 750g
Ambient Temperature Operating 5°C to 55°C
Non-operating -40°C to 70°C
Gradient 20°C/H max
Relative Humidity Operating 5% to 95% (non-condensing)
Non-operating 5% to 95% (non-condensing)
Max. wet bulb 29°C (operating)
Vibration Operating 0.6 mm (5 to 20 Hz) / 1.0 G (20 to 300 Hz)
Non-operating 3.1 mm (5 to 20 Hz) / 5.0 G (20 to 300 Hz)
Shock Operating 65 G max. (2 ms)
Non-operating 250 G max. (2 ms)
Altitude (operation) Operating 3,000 m (max.)
Non-operating 12,000 m (max.)
Acoustics Noise (idle sound power) (typ.) </= 3.6 bels (ready)
Reliability Specifications
MTBF 1,400,000 hours
Component Life 5 years
Error Rates Seek errors 10 per 108 seeks
Unrecoverable errors 10 per 1016 bits read

Click here to view the manufacturers item description/brochure
